Geometrical Construction Template (2019 template)

Author:
Lew W. S.
Topic:
Geometry

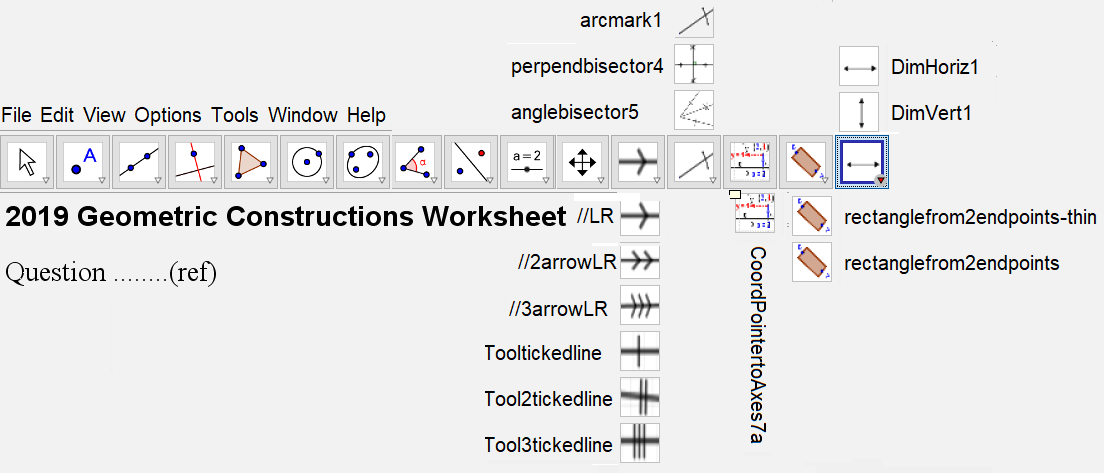

This file can be downloaded. Contains tools (ggt files) that can do the following : 1. Segment with single, double or triple arrow label tool : Click on two points to get. 2 Segment with single, double or triple tick label tool : Click on two points to get. 3. Arc marking tool : Click on centre of arc, then click on circle with radius, then click on two points on circle to form arc 4. Perpendicular bisector tool : Click on two ends of line segments to bisect. 5. Angle Bisector tool : Click on vertex, and then two leg points. 6. Pointer tool : Click on a point to get arrows pointing to x and y axes. 7. Rectangle making tool : thin or thick rectangle : Click on two end points to create rectangles. 8. Dimensioning tools : horizontal and vertical. Click on two end points to dimension segment.
Geoemetry Construction Tools
Geoemetry Construction Tools
